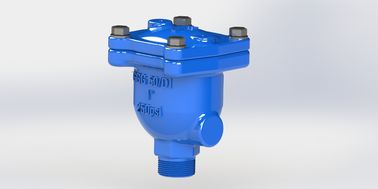

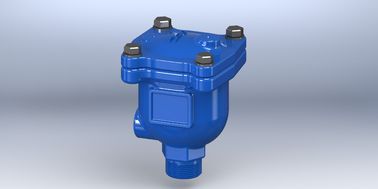

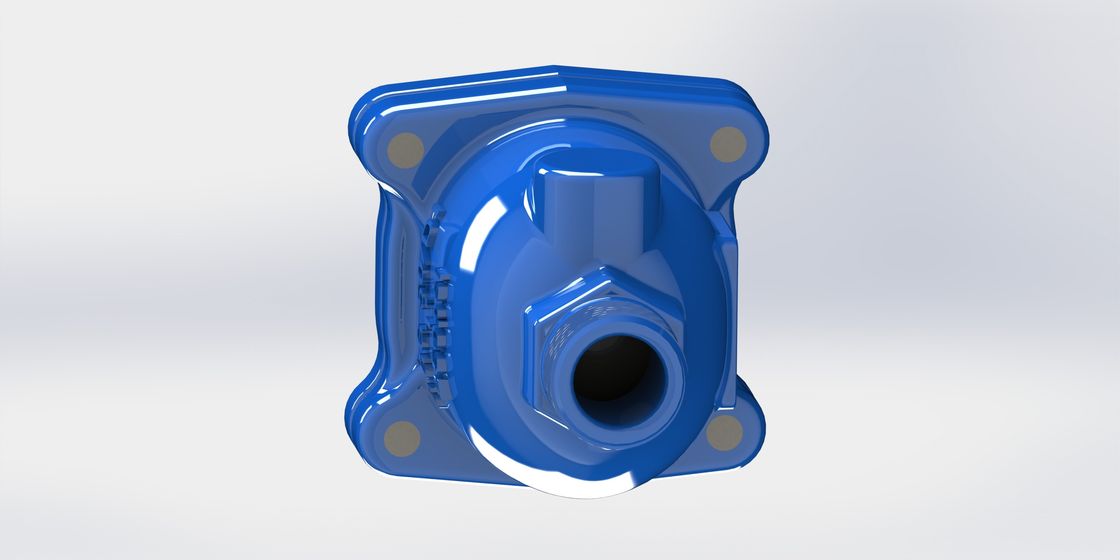

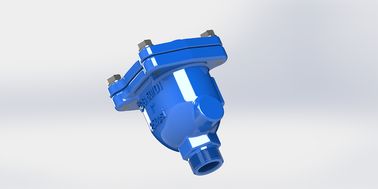

Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4

Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4

  • Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4
  • Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4
  • Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4
  • Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4
Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4
Detail produk:
Place of Origin: China
Nama merek: AFC OEM
Sertifikasi: EN1074-4
Model Number: KARX KARR KARS ARVS
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1
Harga: Price negotiable
Packaging Details: Plywood cases
Delivery Time: Based on order
Payment Terms: L/C, T/T
Supply Ability: 60 days for two containers
Kontak
Detil Deskripsi produk
Product Name: Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 Material: Ductile Iron GJS500-7
Float: Stainless Steel 304 Color: RAL 5010
Rubber: EPDM Flow Area: Full Flow Area
Connection: Thread And Flange
Cahaya Tinggi:

Full Flow Area combination valve

,

Ductile Iron Combination Valve

,

Air Release Valves EN1074-4





Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4​



Feature:

AFC's air release valve conforms to International standard EN1074-4 and AWWA C512.

AFC's air valve is 100% full bore from inlet to outlet

Simple components : valve body and bonnet, float,seal arc, guide barrel etc,.

All internal accessories are of AISI 304SS, hardness and quality are quaranteed.

AFC's air valve have large air exhausting and large air intake under invacuum,one more function of small air releasing.

There is a seal gasket in the valve above big float and it helps orifice make better sealing effect.

Anti-shock accessories is available. Simple design and it can be upgraded from the standard type.


Size Selection Table:



Water flow rate range
Max CMH
760136041608500191003340076300
Main pipeline size
mm
80-300200-400400-700750-10001050-15001500-20002100-3000
Inlet size of KARX
mm
255080100150200300
bore of outlet
mm
507595130170230330
small orifice size
mm
1.61.622.534
4



Material List:

KARS ( Thread Type DN25-DN50)

Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 0Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 1


KARX ( Flange Type DN50-DN300)

Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 2Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 3



Dimension:

KARS ( Thread Type DN25-DN50)


Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 4



Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 5















































































































































KARX ( Flange Type DN50-DN300)



Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 6Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 7Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 8





Air Intake



Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 9

Small air venting

Thread Type Ductile Iron Combination Air Release Valve Meet EN1074-4 10
