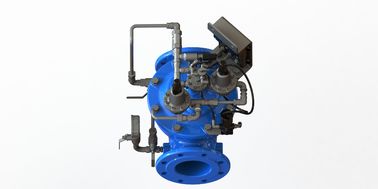

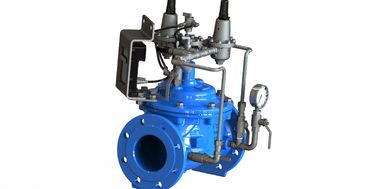

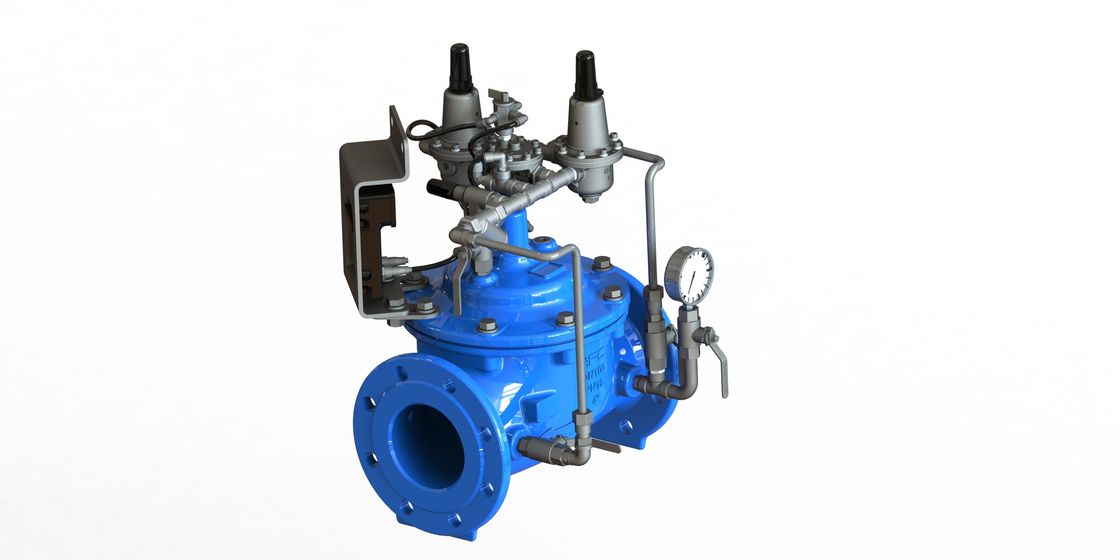

Type One Epoxy Coated Pressure Control Valve Remote Controller By Bluetooth

Type One Pressure Management valve Switch Pressure Based On Time Ductile Iron EPOXY Coated​

Description:

    P26M can switch two sets of pressure in six different time zones in one day. It helps to manage the pressure in different time zone when flow rate demand varies.

Feature:

•10 years life lithium battery
• A black control box and solenoid valve connected to the control tube system.
• P26M - 6 different time zone with 2 different pressure in one day. Each day is independent for setting.
• Single remote controller can be fitted for multiple valves setting use by bluetooth connection , no matter numbers of valves
• Remote Controller
• Controller box can be set either by timing or flow rate thru remote controller

Service Fields:

For water system, irrigation system.

Technical Data:

Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1

Series Description:

Materials And Dimensions DN50-DN350

Materials And Dimensions DN400-DN800
