Suzhou Alpine Flow Control Co., Ltd
Menjadi Pemimpin Pasar di Katup Kontrol Aliran Air
 |
| Place of Origin: | China |
| Nama merek: | AFC OEM |
| Sertifikasi: | WRAS |
| Model Number: | ARVS |
| Minimum Order Quantity: | 1 |
|---|---|
| Harga: | Price Negotiable |
| Packaging Details: | Plywood cases |
| Delivery Time: | Based on order |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 days for two containers |
| Product Name: | Air Release Vent Valve Thread Type | Model Code: | ARVS |
|---|---|---|---|
| Material: | Ductile Iron GJS500-7 | Float: | Stainless Steel 304 |
| Color: | RAL 5010 | Rubber: | EPDM |
| O-ring: | NBR | Connection: | Thread |
| Cahaya Tinggi: | air release valves for water systems,air pressure release valve |
||

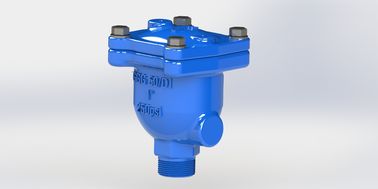

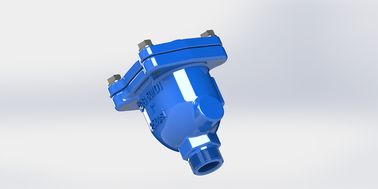

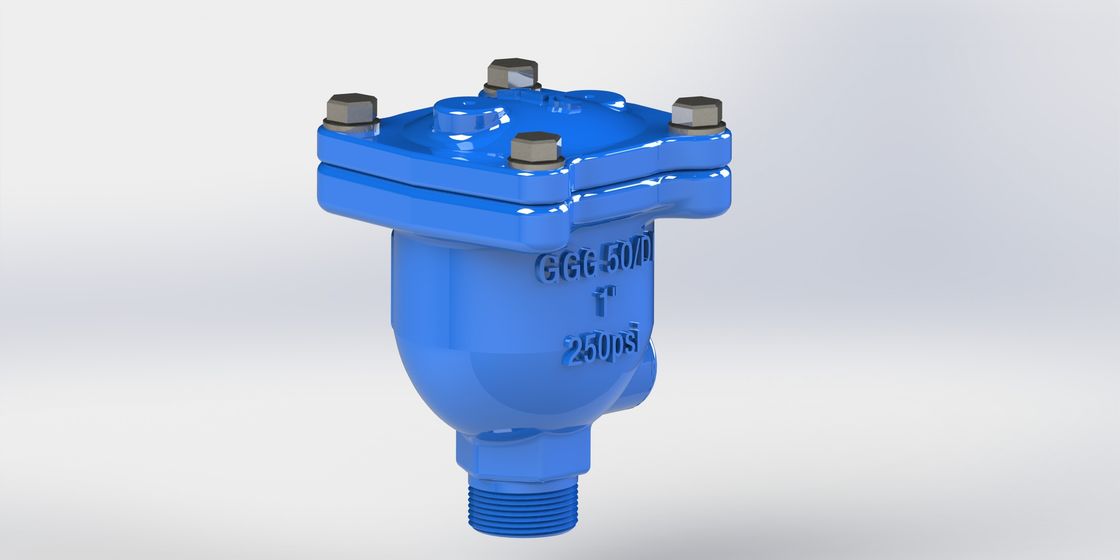

Single Air Release Valve Single Body Thread Type Small Air Venting For Building Service
Description:
ARVS-Single air release valve is generally installed in the peak of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.
Feature:
• High grade ductile iron body, reduce the weight and much longer life than cast iron.
• Simple mechanism with lever and float.
• The fl oat and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
• Epoxy coating for both inside and outside.
• Male connection can easily be connected to isolated valves, no need further nipples..
• End connection can be BSPT or NPT thread.
Material
Dimension
Air Flow Characteristic
Kontak Person: Mr. Matt Liang
Tel: +86 15195674203
Faks: 86-512-6673-2928
