Suzhou Alpine Flow Control Co., Ltd
Menjadi Pemimpin Pasar di Katup Kontrol Aliran Air
 |
| Place of Origin: | China |
| Nama merek: | AFC OEM |
| Sertifikasi: | EN1074-4 |
| Model Number: | KARX KARR KARS ARVS |
| Minimum Order Quantity: | 1 |
|---|---|
| Harga: | USD RMB |
| Packaging Details: | Plywood cases |
| Delivery Time: | Based on order |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 days for two containers |
| Material: | Ductile Iron GJS500-7 | Float: | Stainless Steel 304 |
|---|---|---|---|
| Color: | RAL 5010 | Rubber: | EPDM |
| Flow Area: | Full Flow Area | Sealing Arc: | Stainless Steel 304 |
| Cahaya Tinggi: | air pressure release valve,water air release valve |
||

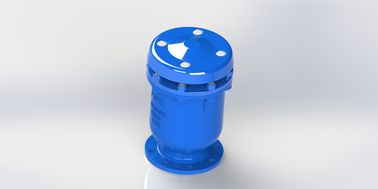

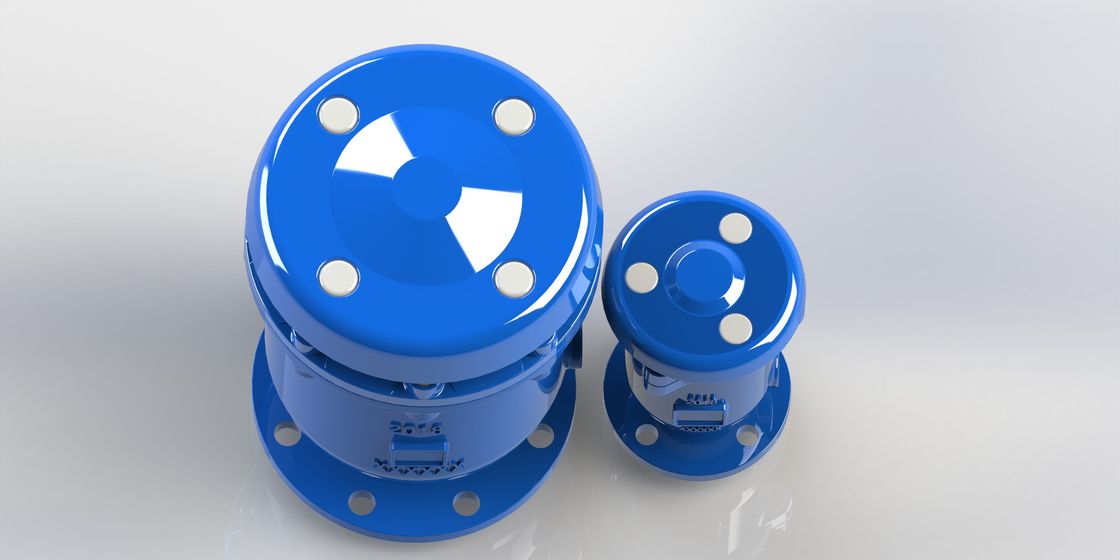

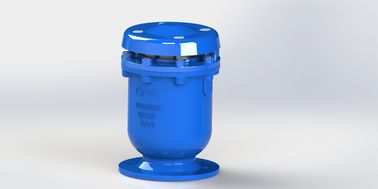

Full Flow Area EN1074-4 Combination Air Release Valve Single Body Triple Function Flange Type
Feature
Combination kinetic air release valve provide 3 functions:
1.Large air release during fi lling of the pipeline.
2.Small air release under pressurized pipeline.
3.Large air intake during draining of the pipeline.
. Advanced design with simple mechanism, strong fl oat to prevent cracking during sudden water hammer& quick closure.
. Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
. No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
. Smooth cage outside of the float, keep float moving in specifi ed guide rail.
. Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
. Outside screen will be an option for safety and prevent insects or birds in.
. Fully fusion epoxy coated inside and outside of valve body for long term services.
. Manufacturing standard meets BS EN1074-4, AWWA C512
. Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.
Size Selection Table:
| Water flow rate range Max CMH |
760 | 1360 | 4160 | 8500 | 19100 | 33400 | 76300 |
| Main pipeline size mm |
80-300 | 200-400 | 400-700 | 750-1000 | 1050-1500 | 1500-2000 | 2100-3000 |
| Inlet size of KARX mm |
25 | 50 | 80 | 100 | 150 | 200 | 300 |
| bore of outlet mm |
50 | 75 | 95 | 130 | 170 | 230 | 330 |
| small orifice size mm |
1.6 | 1.6 | 2 | 2.5 | 3 | 4 |
4
|
Material List:
KARS ( Thread Type DN25-DN50)
KARX ( Flange Type DN50-DN300)
Dimension:
KARS ( Thread Type DN25-DN50)
KARX ( Flange Type DN50-DN300)
Air Flow Characteristic
Large Air Exhausting
Air Intake
Small air venting
