Ductile Iron Gate Valve Top Cap Or Hand Wheel Operated , Vulcanized Rubber Wedge

Detail produk:

Place of Origin:	China
Nama merek:	AFC, OEM
Sertifikasi:	EN1074-2, ISO9001
Model Number:	GBHX, GBCX, GBEX

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	USD, RMB
Packaging Details:	Plywood Cases
Delivery Time:	Based on order
Payment Terms:	L/C, T/T
Supply Ability:	60 days for 2 container

Kontak

Detil Deskripsi produk

Coating:	Fushion Bonded EPOXY	Body Material:	Ductile Iron GSJ500-7
Rubber Wedge:	Vulcanized EPDM	Color:	Blue RAL5010
Standard:	EN1074-2 ISO9001	O-ring:	NBR
Cahaya Tinggi:	ductile iron gate valve , awwa gate valve , Ductile Iron Gate Valve Top Cap

Gate Valve Suitable For Water, Resilient Seated, Vulcanized Rubber Wedge

Specification:

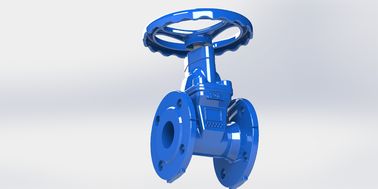

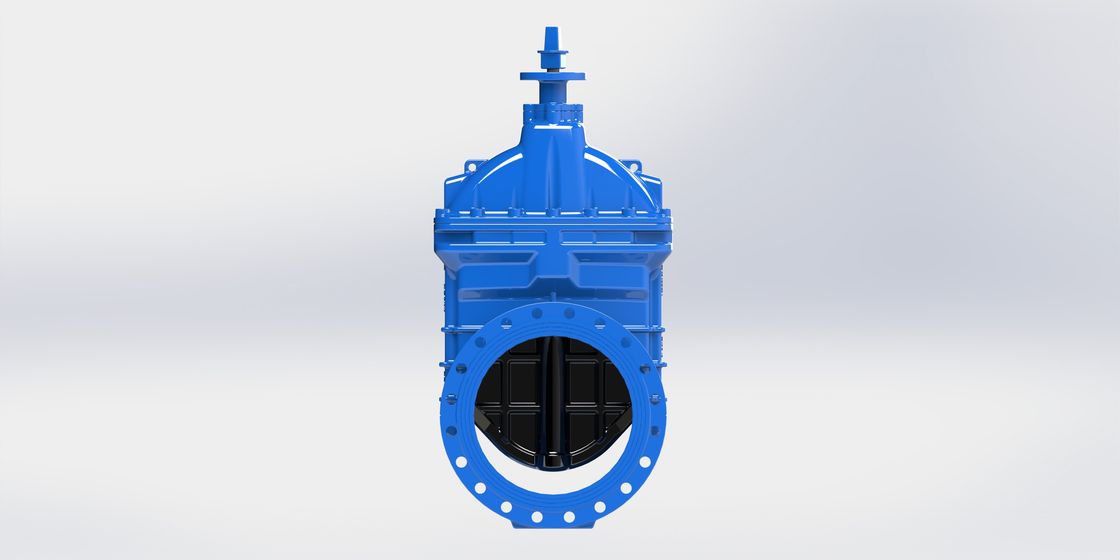

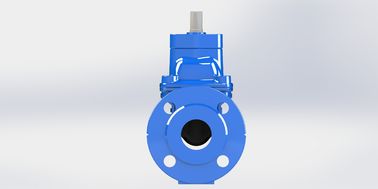

GBCX GBHX is a gate valve with top cap or handwheel operated, DI body and bonnet, EPDM rubber wedge, bronze nut, 420SS stem, PN10/16.

Comply with BS EN 1074, BS 5163, BS EN 1171 Standard, the distance between F/F meets BS EN558-1. High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.

Coating;

Valve internal and external coatings shall be NSF 61 Certified Epoxy Coating, thickness more than 250um.

Material:

Body: GJS500-7, WRAS approved epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS500-7, EPDM inside and outside for potable water
Gaskets: EPDM

Size	DN50-DN600
Working Temperature	- 10C- 80C
Flange	PN10/16
Flow Media	Water, Sewage Water
Face to Face	EN558-1

Model Code:

Ductile Iron Gate Valve Top Cap Or Hand Wheel Operated , Vulcanized Rubber Wedge 0
