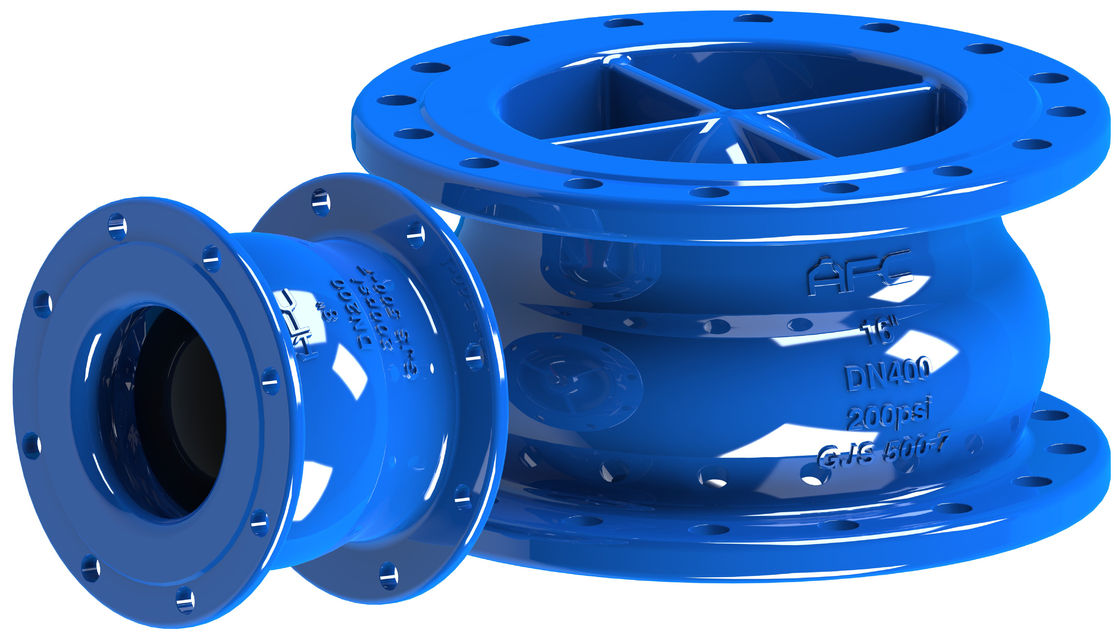

Vertical / Horizontal Installation Non Slam Type Check Valve Powder Epoxy Coated Available

Ductile iron Low Head Loss Anti Water Hammer Non Slam Check Valve EPOXY Coated Quick Close​

Features:

·High strength ductile iron body used for durability and less weight.
·Advanced dynamic design of single body with diffuser provides streamline flow and assures lower head loss.
·One of the lowest head loss check valve, big save in pumping power cost, valve disc with shorter stroker and spring reverse faster than most of check valve.
·Coated with powder epoxy both inside & outside for corrosion resistance.
·Bronze bushing reduce wearing problem during operation.
·Hydrodynamic design with spring ensures non slamming and water hammerless.
·Stainless steel spring hidden in the diffuser under protection while valve in operation.
·Disc will positively close before reverse flow, and maximize the closing speed up to 0.2 Sec.
· Installation can be vertical/horizontal/inclined.
·Comply with EN 558-1, ISO 5752 and EN 1092-2, ISO 7005-2 flange dimension.

Technical Data:

Service Fields:
Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.

Dimension:

DN50 - DN350

DN400 - DN600

Materials:

DN50-DN350
